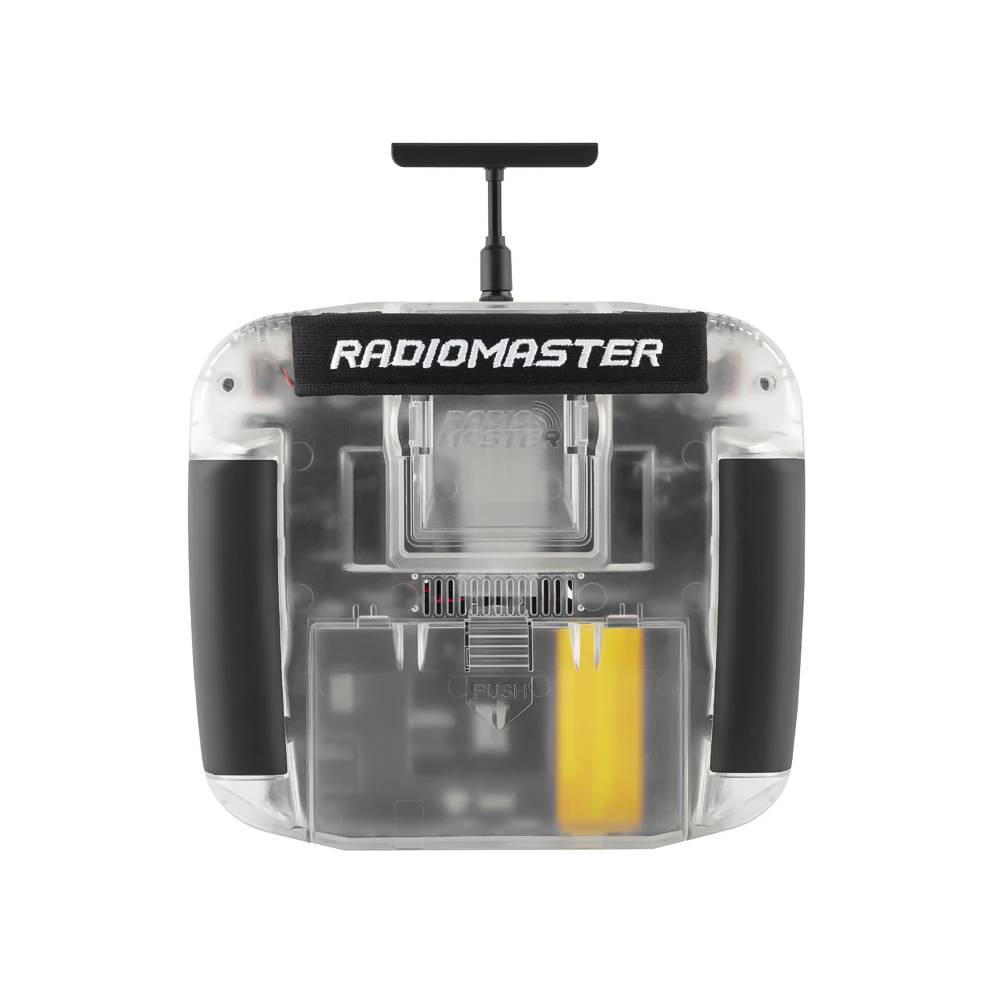

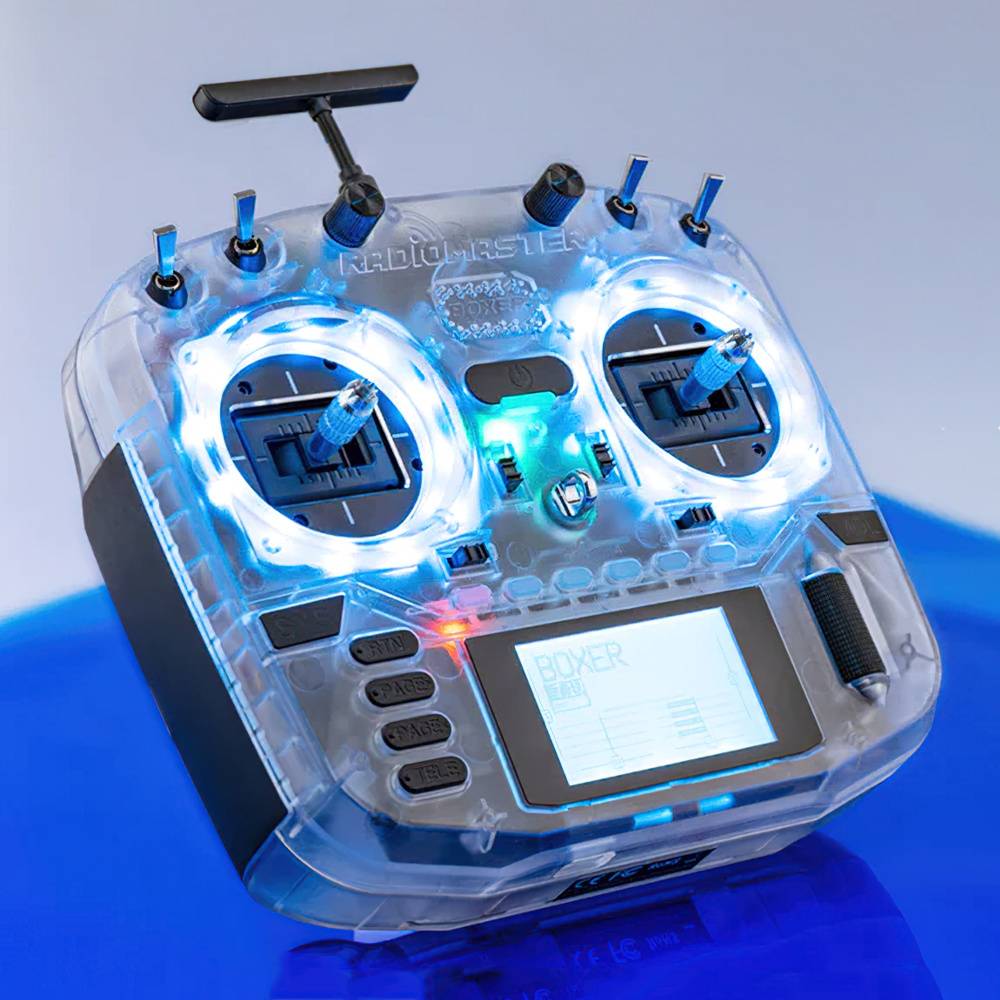

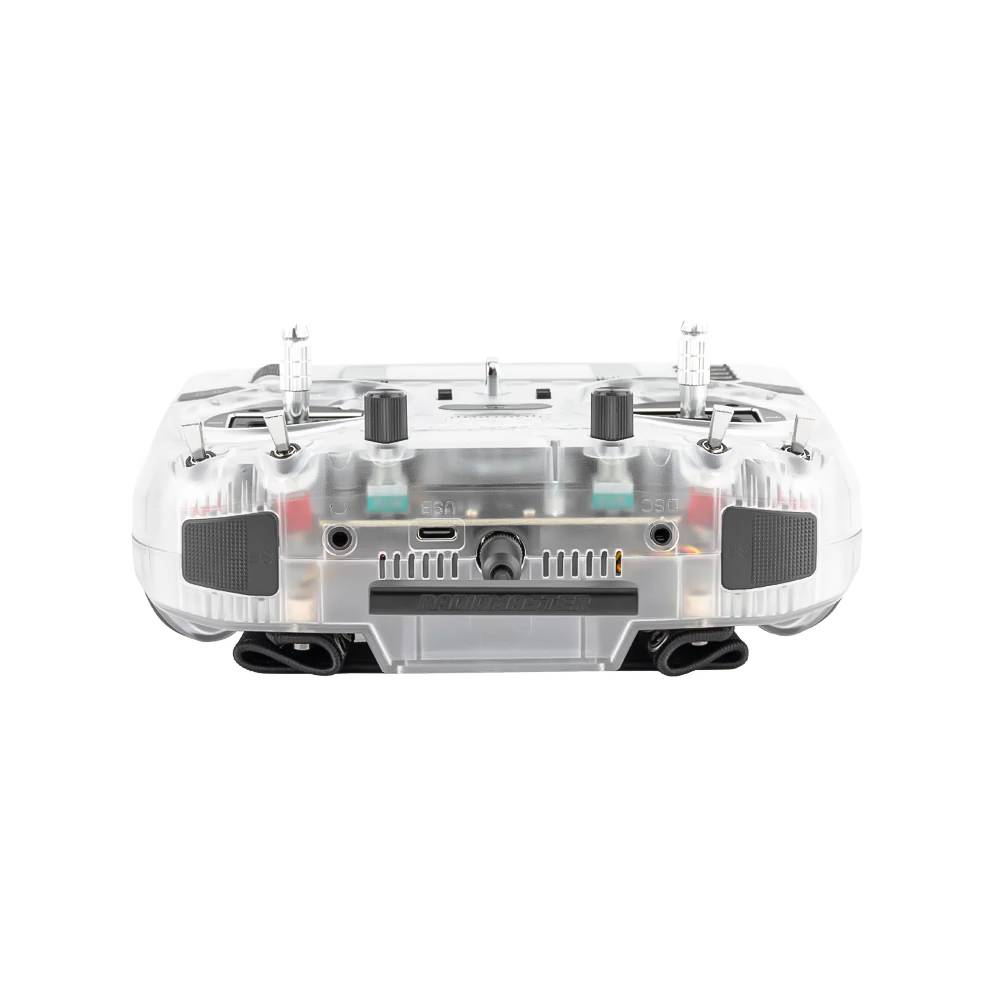

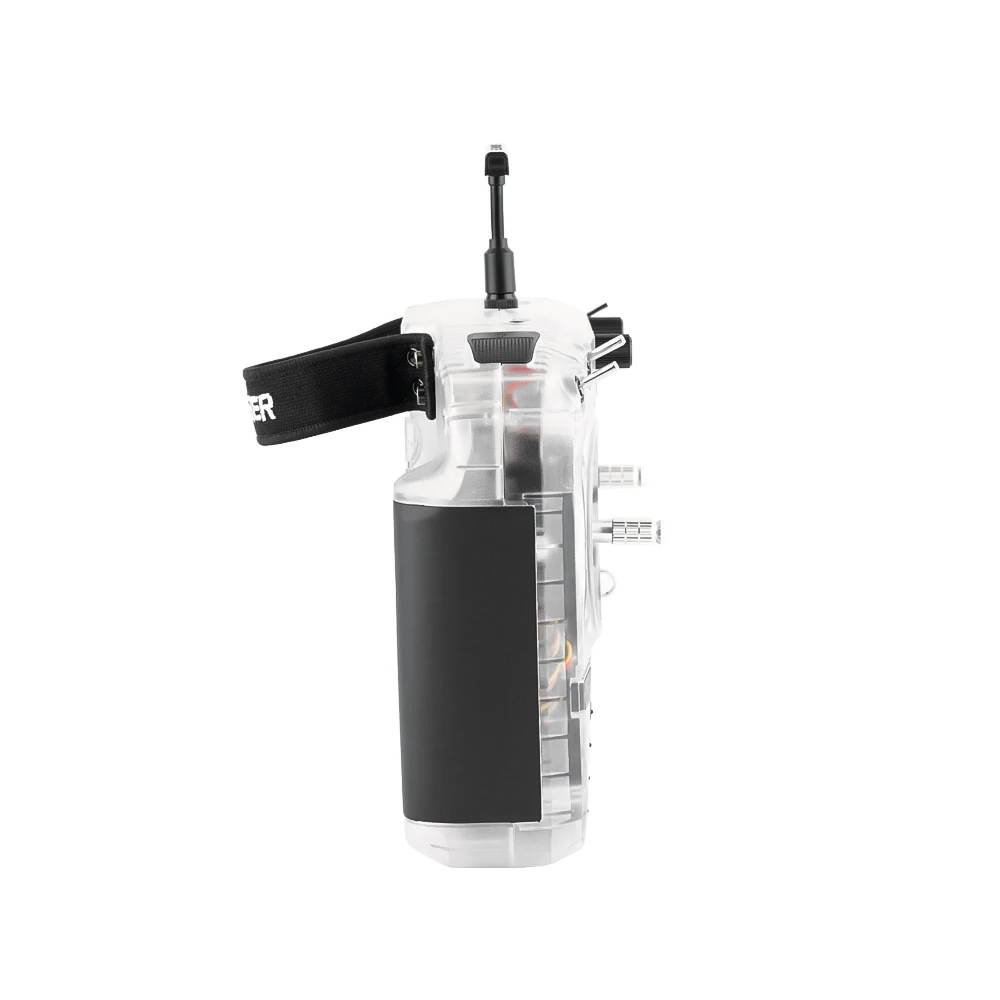

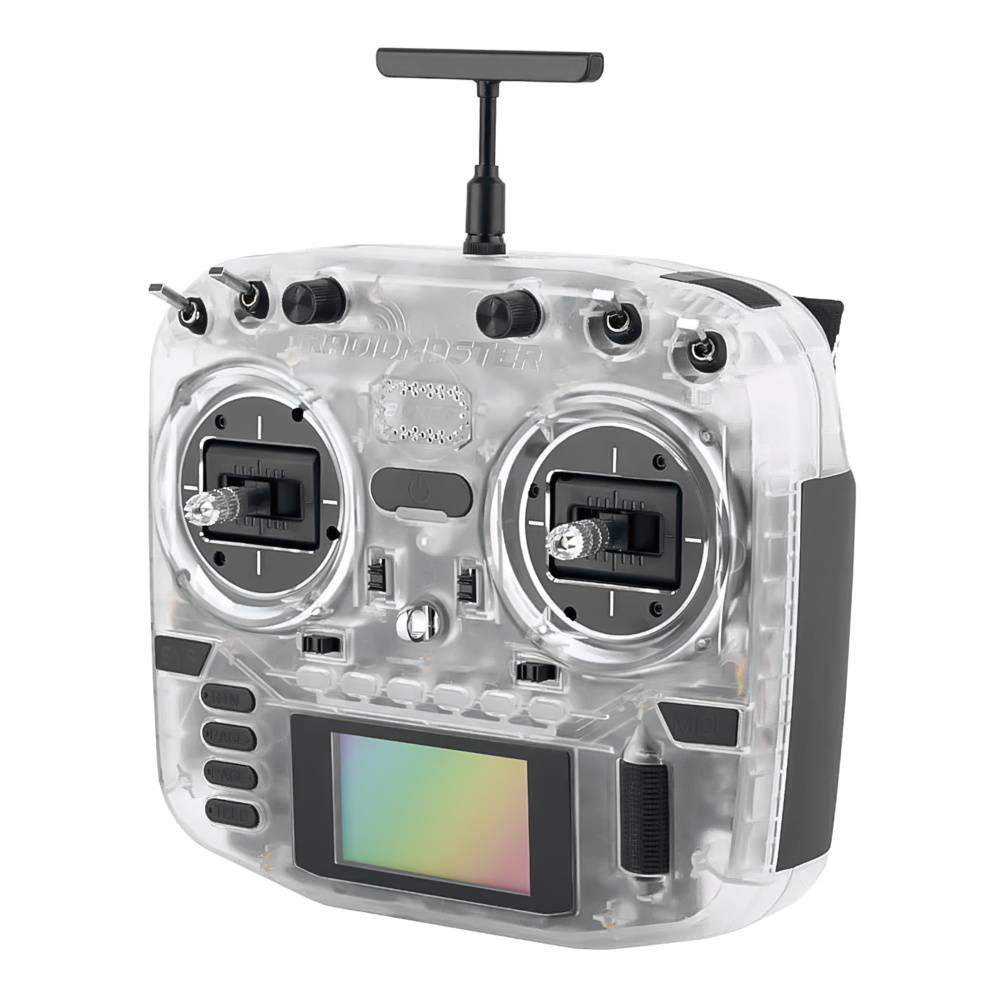

RadioMaster Boxer Radio Transmitter w/ LEDs – ELRS 2.4GHz M2 (Transparent)
Available on backorder
$230.00
Available on backorder
About this product
The RadioMaster Boxer Radio Transmitter is compact, ergonomic, and powerful. This radio features an STM32VGT6 processor, QC3.0 charging, and a new low-profile latching SE switch and momentary SF switch. Featuring full-size hall gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function. The Boxer radio is now available in a Transparent Edition – an electrifying fusion of style and performance that is sure to set the RC community ablaze! The White LED kit included allows you to customize the look of your radio even further! A bonus neck strap has been included to complete the set with style and comfort.
Note: Battery is not included.
VIDEO: Boxer Radio Transparent Version
Features
- Industry-first fabric handle for improved portability
- Standard JR module compartment Internal module
- External Module Power Slots in Battery Cover
- Signature RadioMaster Carrying Case
- Supports External 2S Power Supply
- Gimbal Protector for Safe Storage
- Oversized Battery Compartment
- Supports USB-C direct charging
- Pre-installed EDGETX Firmware
- V4.0 Full-Size Hall Gimbals
- White Gimbal LEDs
- Supports 2.0A MAX
- Ergonomic Design
- Transparent Color
- ELRS 2.4GHz
Specifications
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Battery: Supports 2S 6200mAh for up to 20 hours (Batteries are not included)
- Standardized button layout: Versatile 6-position switch for flight mode access
- Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
- Transmitting Power: 30dBm max FCC (ELRS); 20dBM (4-in1/CC2500)
- Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
- Refresh Rate: Internal ELRS module capable of 1,000Hz (ELRS only)
- Upgrade Method: USB/SD card & EdgeTX Companion PC software
- Protocols Options: 4-in-1, CC2500, or ELRS 2.4GHz
- Channels: Max 16 channels (Receiver dependent)
- Processor: STM32VGT6 processor with 1MB RAM
- SD card: Slot with pre-loaded SD card included
- External module: JR/FrSKY/Crossfire compatible
- Module Power Slots: External in Battery Cover
- Antenna: Adjustable/Removable T-Antenna
- Display: 128*64 Monochrome LCD display
- Supported protocols: Module dependent
- Cooling Fan: Built-in (ELRS Only)
- Frequency: 2.400GHz-2.480GHz
- Voltage Range: 6.6-8.4V DC
- Model: Radiomaster Boxer
- Fast Charging: QC3.0
- Size: 235*178*77mm
- Gimbal LEDs: White
- Color: Transparent
- Weight: 532.5g
Recommended (Not Included)
- AGO1 CNC Colored Gimbals:Â RadioMaster CNC AG01 Hall Gimbal (Set of 2) w/ Self Centering + Throttle – Multi Color
- AGO1 CNC Black Gimbals:Â RadioMaster CNC AG01 Hall Gimbal (Set of 2) w/ Self Centering + Throttle
- Transmitter Battery:Â Radiomaster 2S LiPo Transmitter Battery for Boxer – 6200mAh

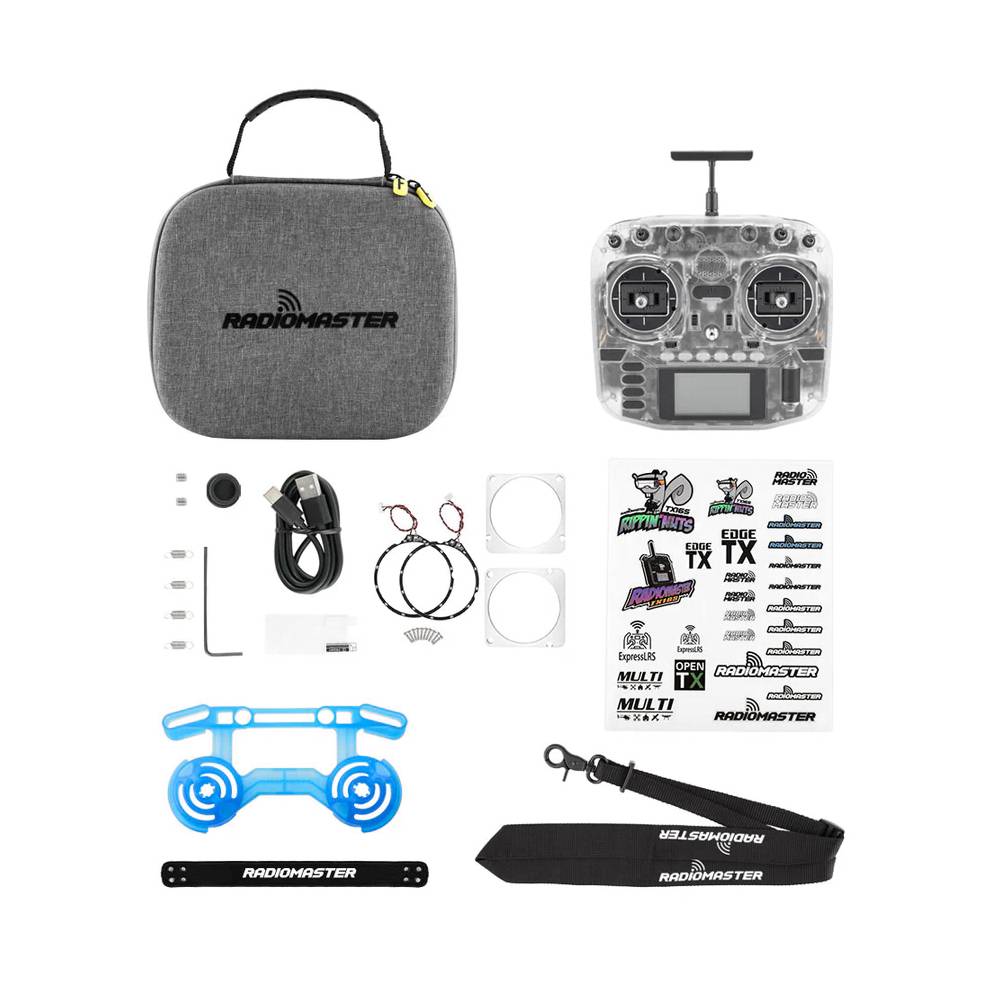

Includes
- 1x  RadioMaster Boxer Radio Transmitter w/ LEDs – ELRS 2.4GHz M2 (Transparent)
- 1x White Gimbal LEDs (Set of 2 – Uninstalled)
- 1x 3D Printed Gimbal Protector
- 1x Radiomaster Carrying Case
- 1x RadioMaster Neck Strap
- 4x Low Tension Springs
- 1x 18650 Battery Tray
- 1x 1.5mm Allen Key
- 2x M4*4 Screws
- 1x USB-C Cable
- 1x T-Antenna
- 1x Stickers
- 1x Manual
