- The kit includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.
- Updated the design of PCB board and shell, improved the quality of VTX, more durable.

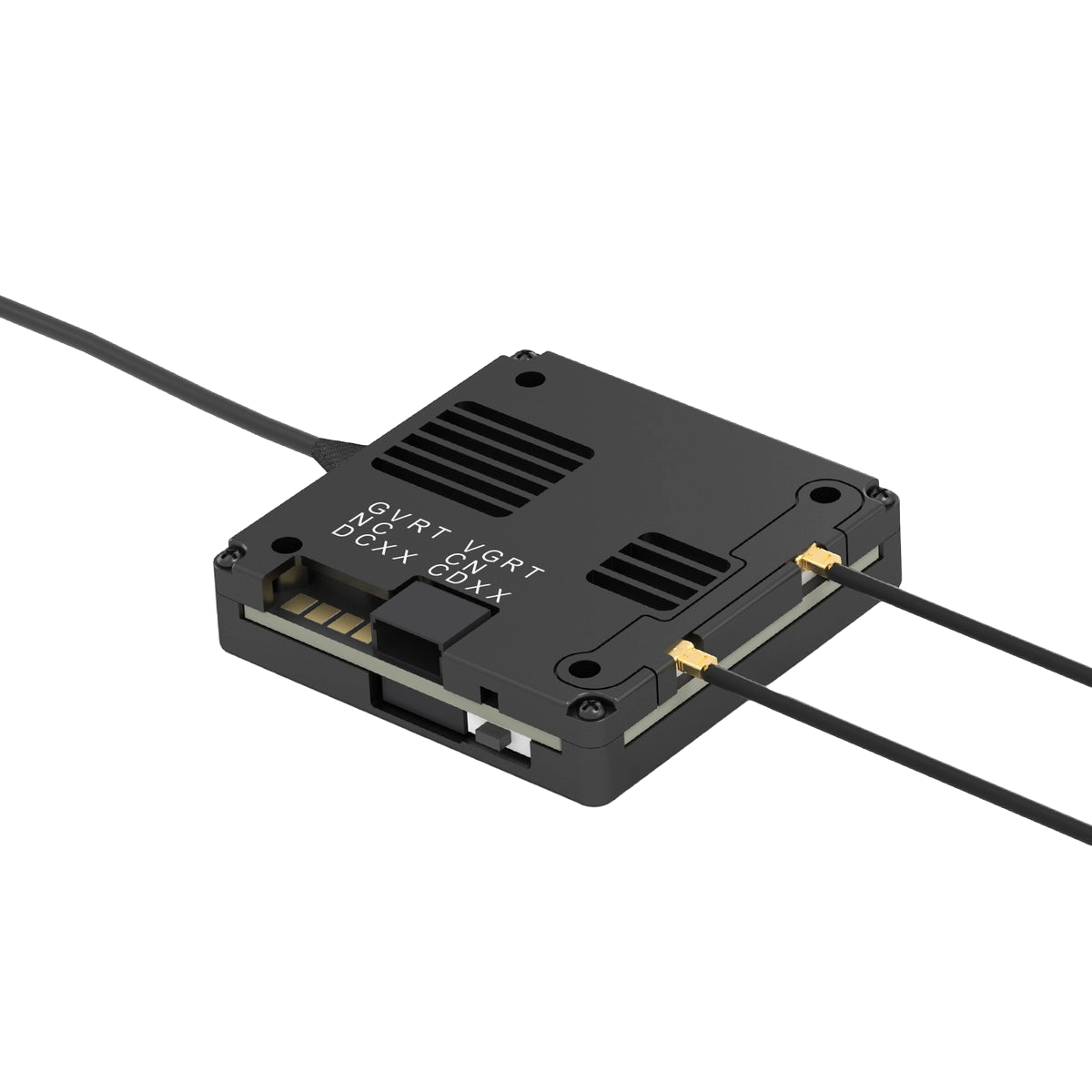

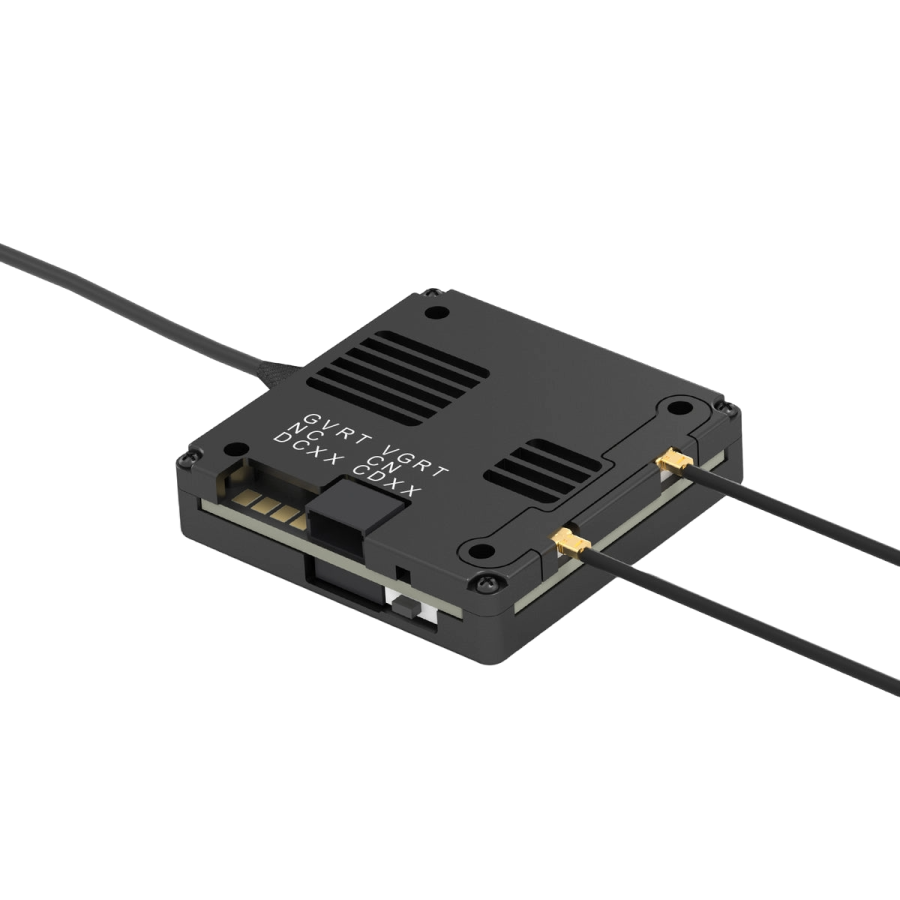

- Optimized the installation place of the antenna, it’s better to protect the VTX.
- The position of the frequency binding button has been changed, to make the frequency binding operation more convenient.
- The kit includes a spare power pad, providing an extra opportunity for welding.
- The Avatar VTX comes with 32g built-in storage it can record 1080P or 720P HD fly videos without interference. 32G built-in storage, recording video time increased by 4 times.
- New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
| Specification | |
| VTX | |
| Model | Avatar V2 module(Dual Antenna) |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Dimensions | 33*33*10.5mm |
| Storage | 32G |
| Recording | 1080P/720P |
| Weight | 15.4g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss; |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 2(IPEX) |
