Remarkably Lightweight And Portable

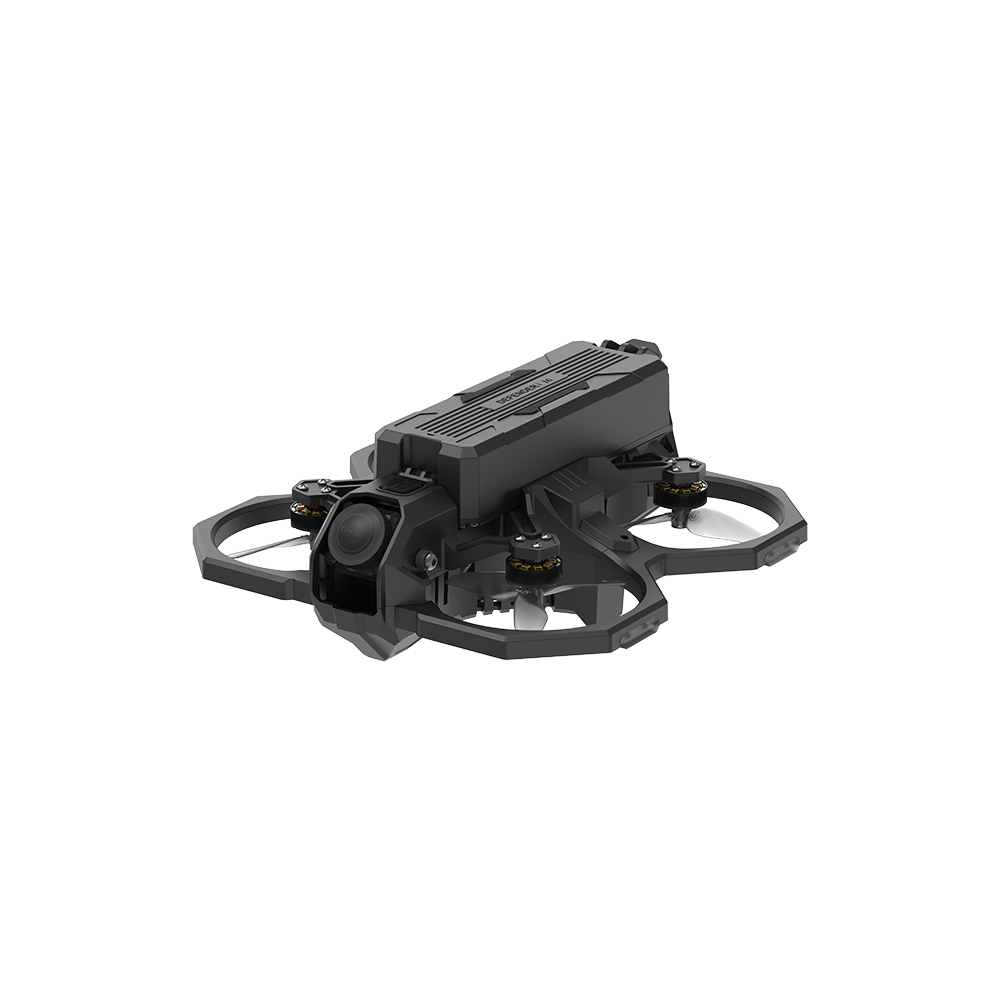

The palm-sized, compact Defender 16 is just as portable as it can be. The whole frame is injection molded for durability and lightweight, equipped with a naked DJI O3 air unit (Supplied by DJI), the Defender 16 is by far our smallest and lightest 4K whoop drone with 128g takeoff weight. It’s not only regulation-friendly, but also the safest in its series, allowing you to fly anywhere and whenever.
One-button Functional Power Switch
Better operation through one physical button, not only just power on and off but also inbuilt programmable RGB light colors and modes to visually display the battery power. We’ve added a protective circuit to extend the lifespan of the battery connector and prevent rapid voltage or current spikes which can protect your electronics from damage.

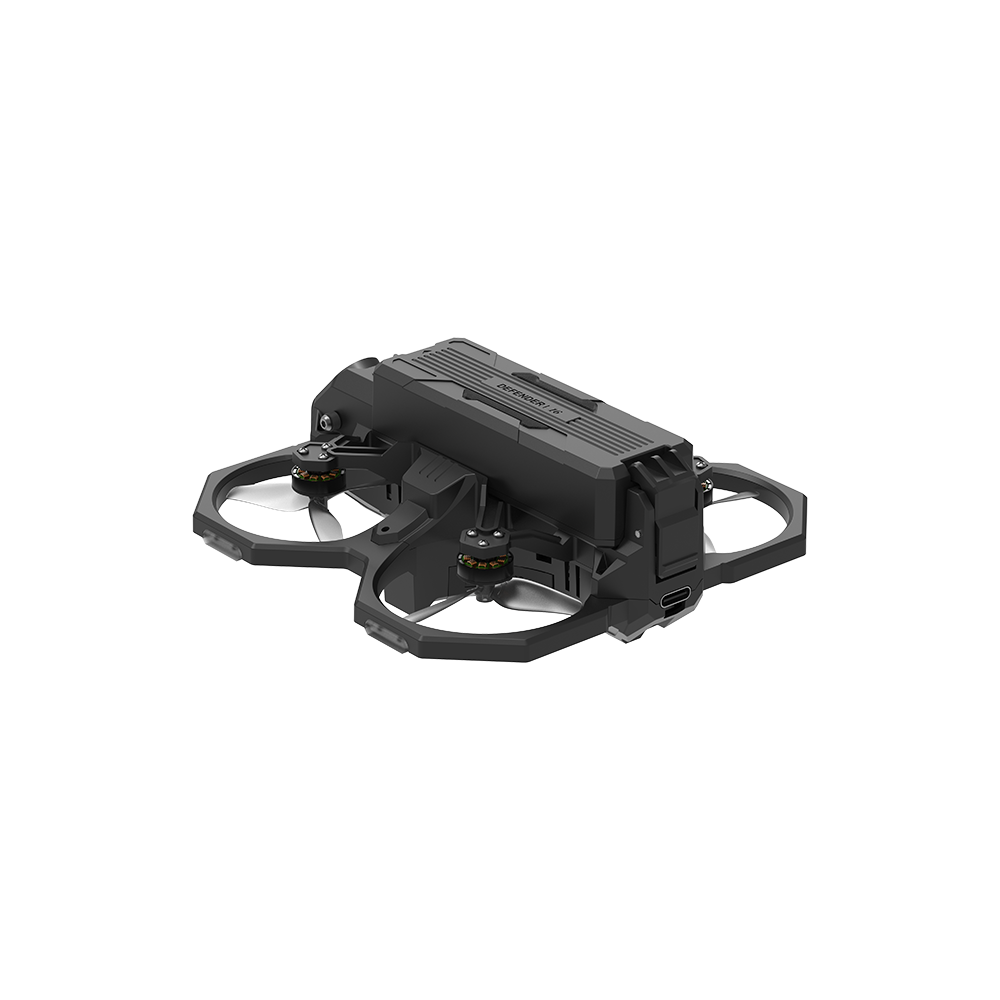

Innovative Quick-Release Battery with Type-C Charger
The Defender 16 comes with a stock 2S 900mAh providing up to 6min flight time. Crash protected battery shell and innovative quick-release structure for easy replacement. Upgraded plug and play Type-C charger for user-friendly fast charging, get 80% charge in just 18 minutes. The battery has an inbuilt auto-discharge module, it will discharge itself when not in use, making it safe and worry-free.
Extremely Convenient User Experience
No fear of dust, take off boldly. By using dustproof port plugs to isolate the interface from the outside, ensure function properly. Extend the life of the interface.
The drone can be disassembled with only 6 screws, making it much more convenient for maintenance and repair.
Full plug and play high performance AIO, 30% increase in redundancy to cope with extreme operations. Integrated beeper for quick retrieval of accidental loss.
All ports and buttons are easy to access.
Countless easy-to-use features let you get started right away.
1) Turtle Mode pre-setup.
2) No soldering is required for the whole drone, motors, and propellers adopting the plug-in mounting method.
3) A dedicated VTX mount bracket with a central grille opening, together with the air duct design in the drone, can dissipate heat when flying.
4) USER1 preset as video transmitter power supply switch, used to manually turn off the VTX when idle to safe power and prevent overheating.
5) Customized vibration damped O3 camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the in-built or in-post camera stabilization, jello free.
Product Name: Defender 16 O3 2S HD
Flight Electronics: Defender 16/20 F411 AIO
Video Transmission: DJI O3 Air Unit (naked version)
Frame wheelbase: 81mm
Motor: Defender16 1002 14000KV motors
Prop: Defender16 1809-3 props
Takeoff Weight incl. 900mAh battery: 128g
Dimensions (L×W×H)：121x117x47mm
Max Speed: 55Km/H (Manual Mode)
Maximum Takeoff Altitude: 2000 m
Max Hover Time: Approx. 6 mins(with 2S 900mAh battery)
Max Wind Speed Resistance: Level 3
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: N/A
Product Name: Naked DJI O3 Air Unit
Communication Bandwidth： Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only)；5.725-5.850 GHz(RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

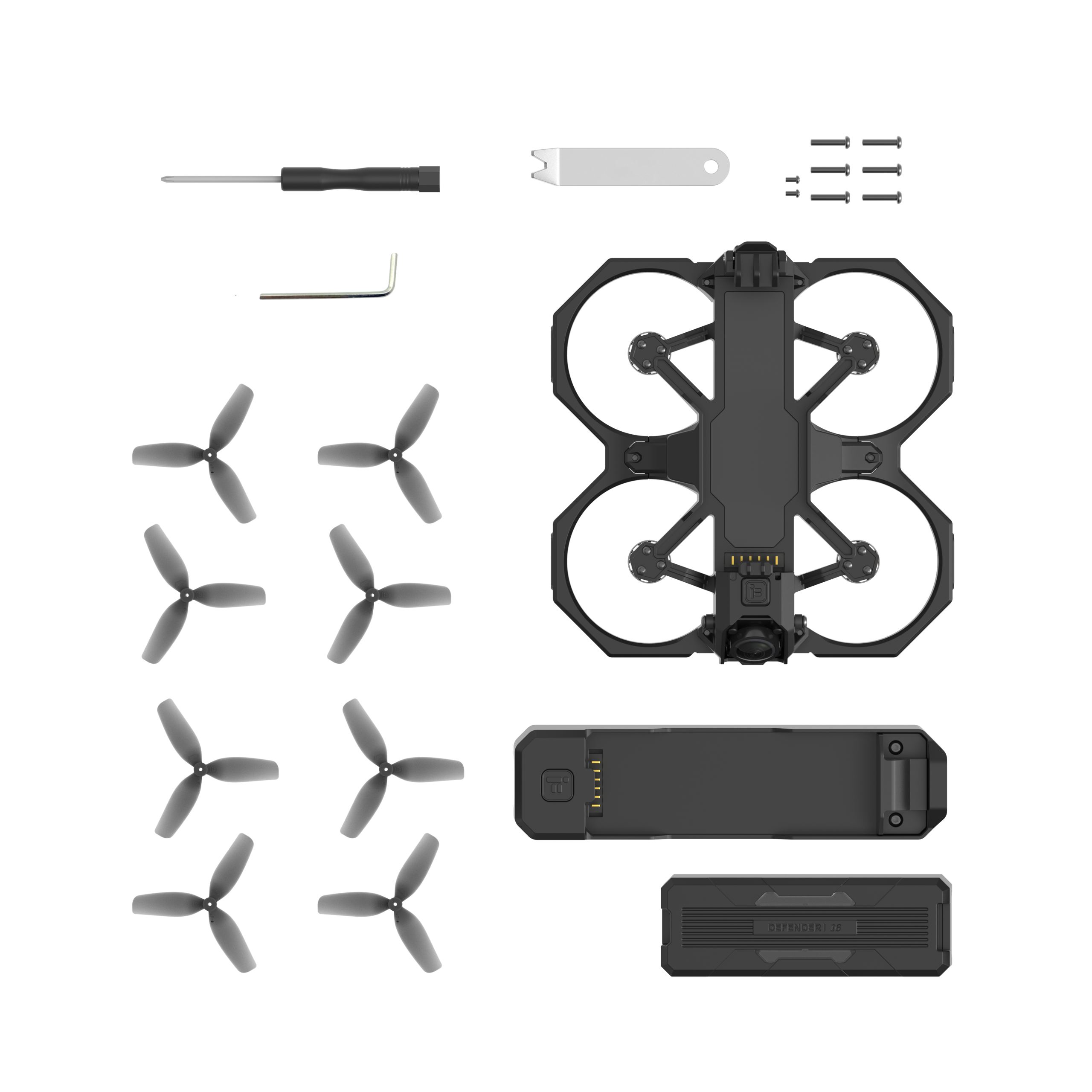

1 x Defender 16 O3 HD BNF
1 x Defender 16 900mAh 25C 2S Battery
1 x Defender 16 Type-C Charging Adapter
4 x Defender 1809-3 Props (pairs)
1 x Propeller Removal Tool
